Sublistar Star IV 60R Roll To Roll UV DTF Printer

3 sold in last 10 hours
Sublistar
50 In stock
$23,809.98
Parameter Print Head: EPSON-F1080Max Print Size: 600mmMax Speed: 12m2/hInk Type: ECO-UV Curing Ink Feature UV-Star IV is a new technology of the digital revolution. The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.UV DTF printing...
Subtotal $23,809.98
Add to Wishlist
customers are viewing this product

Product details

Parameter

Print Head: EPSON-F1080
Max Print Size: 600mm
Max Speed: 12m2/h
Ink Type: ECO-UV Curing Ink

Feature

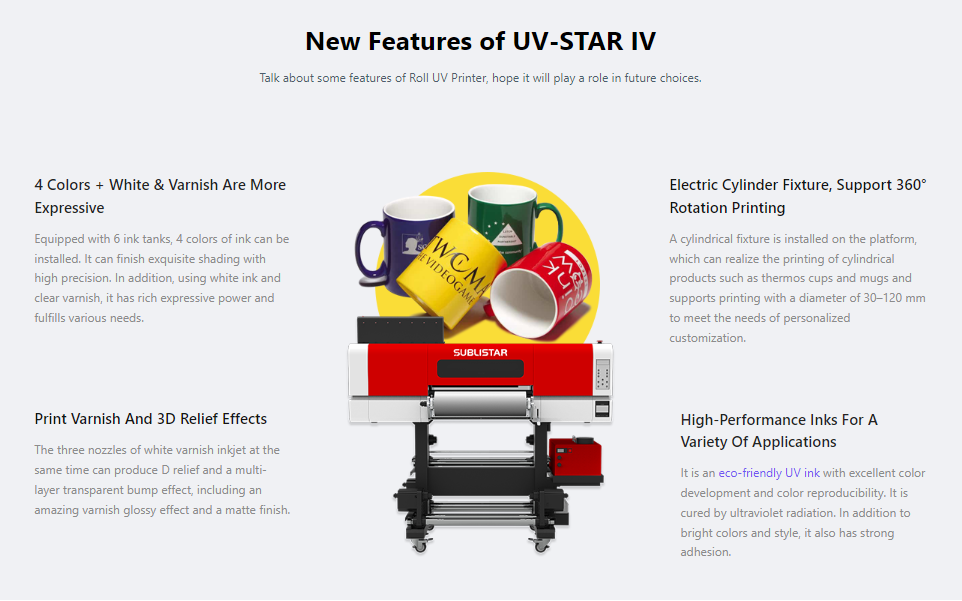

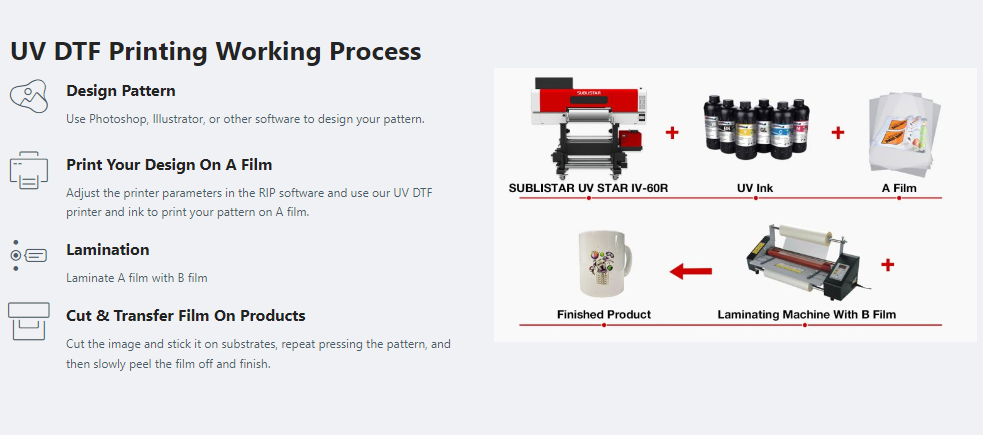

UV-Star IV is a new technology of the digital revolution. The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.
UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing with UV ink.



The Above Display Is Only The Price Of The Printing Machine. Additional Shipping Costs Based On Details, Such As Shipment Origin, Destination, Date, Packaging, And Weight Will Be Calculated By Sublistar Salesmen. Please Contact Us To Get The Full Quotation Before You Buy Our Machines.





UV Printer Parameter

Brand Sublistar
Item Model UV STAR IV-60R
Print Nozzle Using epson print head, including 400 nozzles/ row*8*lines*4, high quality up to 1800dpi
Print Accuracy/Speed 4pass:12m2/h 6pass:8m2/h 8pass:5m2/h
Ink Sort UV
Water based ink/ Eco solvent ink, Water rased ink; Dye ink, Sublimation ink
Capacity 5 Colors:! .5L*7/color
Media Maximum Width 620mm
Thickness 1.5mm to 6mm adjustable
Max Roll Weight 20KG
Sort UV-DTF
High Printing Quality Three intelligent eclosion print function; VSD technology
Media Heater Pre/Post Heater (Can be controlled separately)
Print Interface USB 2.0
RIP Software Maintop6.0, Photoprint, Print Factory
Voltage AC110V+/- 10%. AC220V+/-10%、50/60+/HZ
Operating Environments Temperature: 20°C-35°C; Humidity:35%RH-65%RH
Power 200W for drawing and 450W for heating in front, middle and back
Dimensions Of Printer(LxWxH) 1785x790x 1613mm
Dimensions Of Packing(LxWxH) 2100 x 970 x 730mm
Height Of Worktable 1062mm
Net Weight 200KG
Gross Weight 220KG

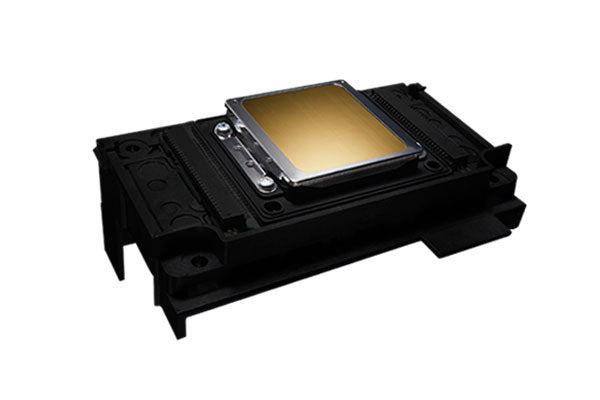

Epson F1080(XP600) Print Head Model XP600/F1080
UV STAR IV-30R using Epson F1080 print heads. It is an economical printhead, designed as a water-based head. The price is very cheap, the stability is moderate and it is widely accepted by the market. It is mainly used for small environmentally friendly solvent ink printers or roller UV printers. Ink Types Eco-solvent ink, UV
Size(width x depth x height)(mm) 84.9×57.2×42.6
Weight(g) 60
Nozzle Numbers 1080
Length Between Nozzles(inch) 180
Nozzle Row 6row
Max color/head 6colors(180dpi/color)
Resolution 180npi/row 360dpi/2row
Effective Printing Width(mm) 25.4
Jet Frequency(kHz) 46(single dot),11.52(multi dot)
Ink Drops(pl) 4.5-9-20-40
Ink Viscosity(mPa.s) 3~5



Applications Of Roll UV Printer

Different customers will use UV printers to print different products. Subristar roll UV printer is mainly used for toys, mobile phone shells, PVC boards, acrylic, stainless steel, background walls, etc. What industries are Roll UV printers used in? For example, toy industry, advertising and signage market, home decoration and furniture market, personalized gift market, etc.







Show More
Show Less

1 Year Warranty

Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.


DTF Starter Kit

Film: 0.6m*100m/0.3m*100m roll size (cold peel) Powder: 2 kg (4.4 lbs) Ink: 1000ml*6 (c,m,y,k+w)

Rip Software

Nam libero tempore, cum soluta nobis est Buy a machine and you will get a $500 worth of rip softwarefor free. CADlink, SAI FLEXI, Acrorip, MainTop for option.


Online Technical Support

The expert team will serve you online and solve any problems you encounter for free.

All Services In One Place Onboarding Service

We offer a dedicated team of professionals to share video/screen share to ensure you get set up and print right away.
On/offline Training Support

We provide important after-sales support and training, free online training, and on-site coaching to customers worldwide. There are several video programs available as training resources.
"Heads and All" Warranty

We provide a 6-month free warranty for print heads, and all printers are backed by a standard 24 months. You can also extend the warranty for peace of mind.
