Sublistar Ultra A3/450 DTF Printer & Shaker
Customer Reviews
Product details
Direct to Film Comprehensive Solution
Epson I3200-A1 Print Head |
Model | I3200-A1 |
DTF-450 Ultra I using Epson I3200 print heads. Epson I3200 head has 3200 nozzles, resolution 600npi, jetting frequency are higher than DX5 and xp600, and also color saturation, printing speed, printing accuracy are better, and the price is cheap. Very cost-effective. | Ink Types | Water based ink |
Size(width x depth x height)(mm) | 69.1×59.4×35.6 | |
Weight(g) | 82 | |
Nozzle Numbers | 3200 | |
![]() |
Length Between Nozzles(inch) | 1/300(in one row) |
Nozzle Row | 8row | |
Max color/head | 4colors | |
Resolution | 300npi/1row 600npi/2row | |
Effective Printing Width(mm) | 33.8 | |
Jet Freqency(kHz) | 43.2(single dot), 21.6(multi dot) | |
Ink Drops(pl) | 3.8-6-12(9.4) | |
Ink Viscosity(mPa.s) | 3~4 |

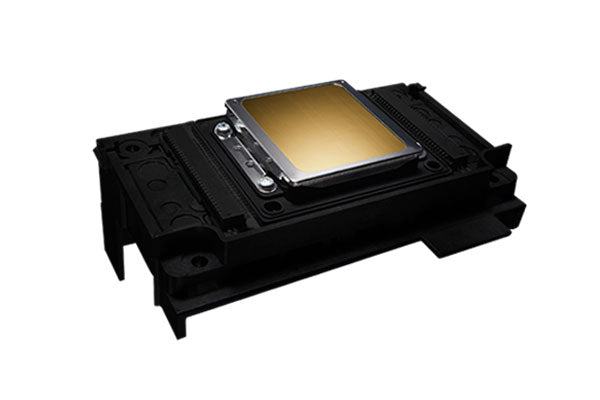

Epson F1080(XP600) Print Head |
Model | XP600/F1080 |
Mini300ProMax using Epson F1080 print heads. It is an economical printhead, designed as a water-based head. The price is very cheap, the stability is moderate and it is widely accepted by the market. It is mainly used for small environmentally friendly solvent ink printers or roller UV printers. | Ink Types | Eco-solvent ink, UV |
Size(width x depth x height)(mm) | 84.9脳57.2脳42.6 | |
Weight(g) | 60 | |
Nozzle Numbers | 1080 | |
Length Between Nozzles(inch) | 180 | |
Nozzle Row | 6row | |
![]() |
Max color/head | 6colors(180dpi/color) |
Resolution | 180npi/row 360dpi/2row | |
Effective Printing Width(mm) | 25.4 | |
Jet Freqency(kHz) | 46(single dot),11.52(multi dot) | |
Ink Drops(pl) | 4.5-9-20-40 | |
Ink Viscosity(mPa.s) | 3~5 |
Machine Parameter
Sublistar DTF PET Film Inkjet Printer | |
Brand | Sublistar |
Model Type | DTF-A3 Ultra I (all-in-one) |
Print Head | I3200-A1 / XP600 |
Print Resolution | 2400DPI |
Ink Type | Pigment ink (C M Y BK+W) |
Max Print Size | 300MM |
Feeding size | 300MM |
Software | Maintop RIP/PhotoPrint RIP/CADlink RIP |
Operation Enviroment | Temperature 24°C~26°C, Humidity 50%~75% |
Power | 110v/220v |
Machine Size | 1900*1075*695mm(L*W*H) |
Packing | (Packing Size): 1990*1150*860mm(L*W*H) |
Weight | (Net Weight): 200KG; (Gross Weight): 280KG |
Applicable Substrate | Cotton, nylon, polyester, 50/50 blends, spendex, chemical fiber, leather, PVC & EVA, Etc. |
New Features

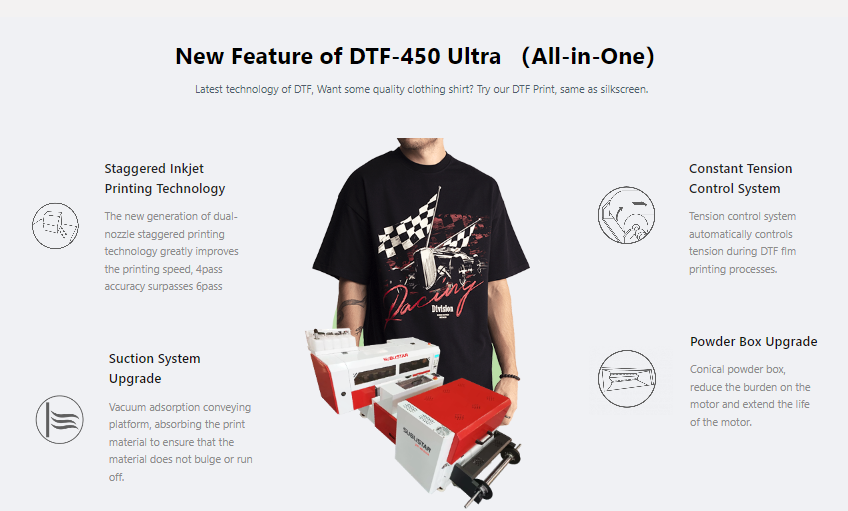

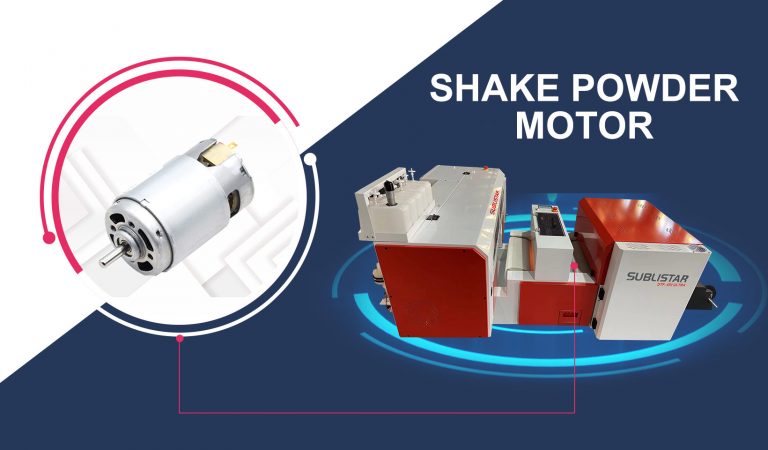

DTF-450 Ultra (all-in-one) has upgraded the nozzle printing algorithm, suction system, tension system, All-in-one Purifier, and Shake Powder Motor. Which improving the stability of the machine, prolong the service life of machine parts, and make the machine more efficient. | |

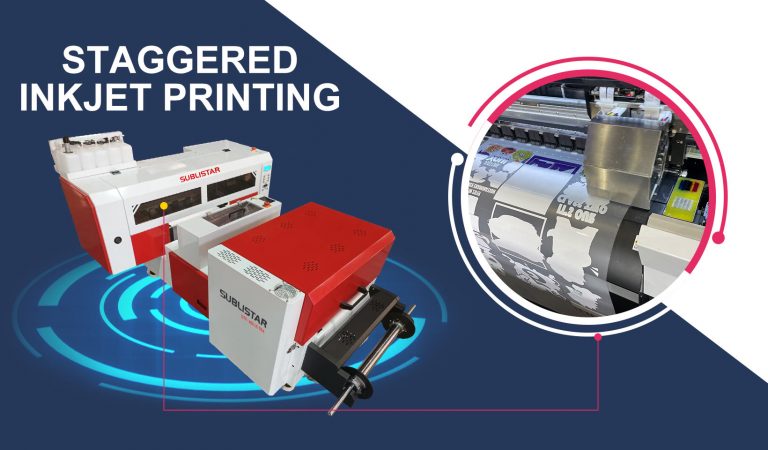

The next generation oblique spray staggered inkjet printing, improved the printing speed, 4pass accuracy surpasses 6pass. | ![]() |
During the printing process, the tension system prevents the print medium from stretching or shrinking, causing sudden registration errors. | ![]() |
Use the tension take-up reel to replace the normal take-up reel shaft.The winding is more flat and neat. The degree of automation is further improved, and a roll of film can be completely printed without manual operation | ![]() |

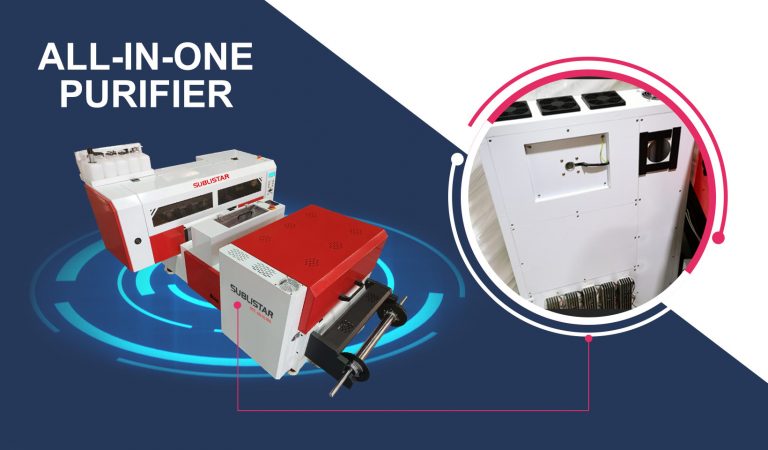

New generation smoke purifiers - Using a thermal superconducting smoke purification system, semiconductor refrigeration liquefies hot smoke for better removal. Simple disassembly and assembly of the filter element, easy maintenance, and better oil collection | ![]() |

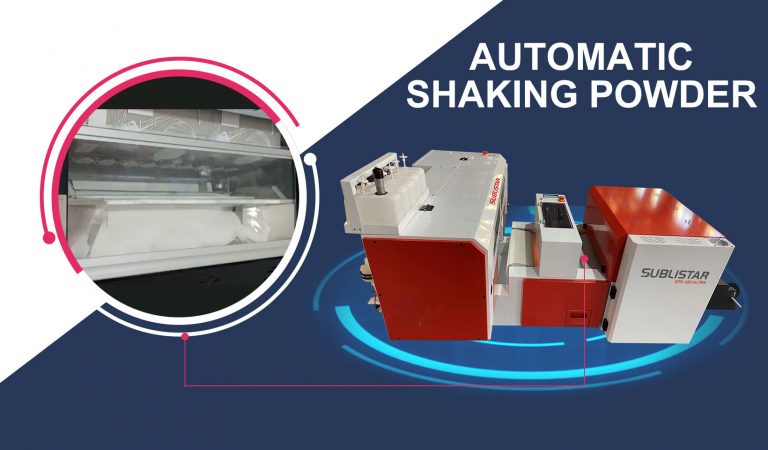

Mute high-frequency powder removal system to reduce noise. excess powder on the film is further removed, so that the final transferred pattern feels better, especially the white powder spots on the image on the dark background clothing can be removed. | ![]() |
