Sublistar 6002 STAR IV DTF Printer & S10 Shaker With 2* i3200
STAR IV 6002 DTF Printer Overview
Advanced fourth-generation dtf printing technology equipped with the latest shaker S10 powder treatment technology, which makes DTF Star-IV series have unparalleled competitiveness. Intelligent, high efficiency, low maintenance.
Features & Benefits

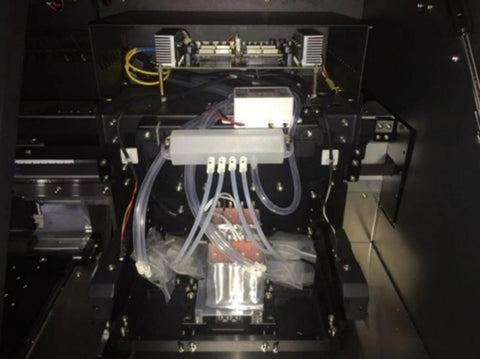

- Ink Damper Heating Available
A damper for ink with an external heating feature. Each ink damper has a heating device attached on the outside. The printer can operate correctly in an environment with significant temperature fluctuation thanks to this technology. The heating feature can guarantee the ink’s good fluidity during the printing process.

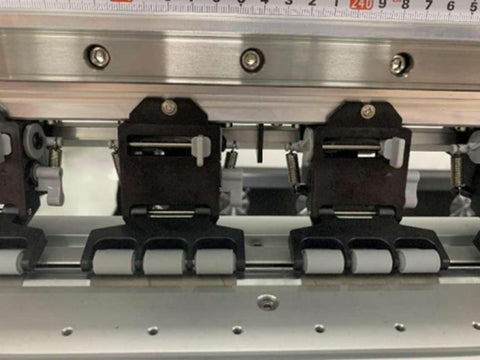

- Pinch Roller Adjustable

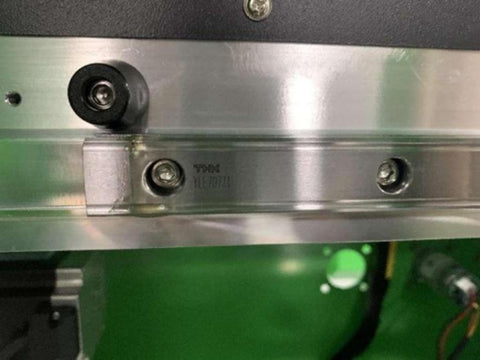

- Mute Linear Guide
Quiet operation and stability. Low noise, high speed, extended service life, and long-term operation without maintenance are all achieved by significantly reducing friction between the silent guide rail’s sliders and improving the retention of lubricating grease.

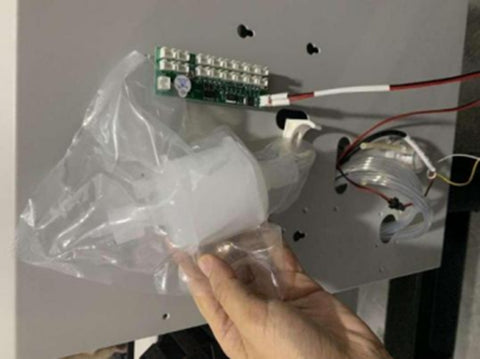

- Japan 3M Filter
Large particles, gels, and other contaminants are efficiently caught by our imported filter, which also permits the necessary color dyes to pass through and stay in the ink. The imported filter offers a superior capacity for impurity filtration and a longer lifespan.

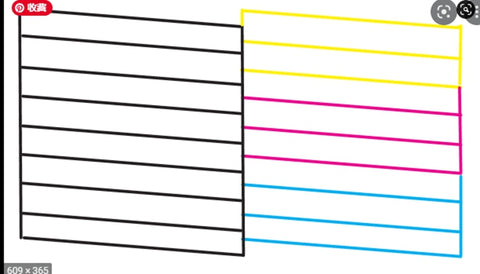

- Advanced Pass System
The employment of sophisticated algorithms and tension-controlled paper feeding helps to decrease obvious streaks, inconsistent color printing, and blurry printing borders.
DTF Applications
The 600mm size was the most popular in the first two years of the DTF printer boom. 2 Epson I3200 printheads are available for reliable performance and low maintenance. Standard printing, fluorescent printing, and high-speed printing are available. The fluorescent print can be printed in 5 colors, widely used in family parent-child sets, school bags or T-shirts, and other garment fabrics.
INCLUDED WITH YOUR PURCHASE:
- Direct to Film Printer & Shaker (STAR-IV 600-SERIES)
- One roll 0.6*100m Hot/Cold All-in-one double-side matte DTF film
- 5kg Pure TPU hot melt DTF powder
- 6 bottles of Hi-pro textile pigment ink (CMYK+WW)
- RIP software(Flexiprinter/Maintop)

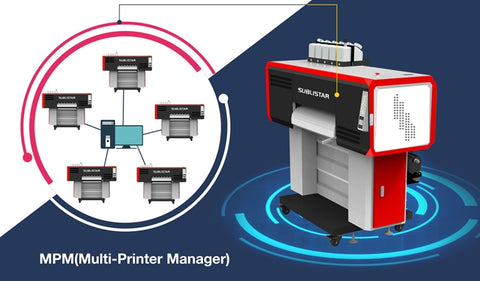

- PM (printer manager) control software
- 1 Power Cord/ USB interface data cable
- Lifetime Technical Support
- Limited 2-year warranty for machine and limited 3~6 months warranty on the Printhead (Please refer to the warranty info)
BONUS: Online Video Tutorials
BONUS: ICC Profile for SUBLISTAR DTF Inks ONLY
NOTE: Option to choose an easy RIP software (MainTop/ PhotoPrint/ CADLink)
* PhotoPrint/ MainTop RIP software is free included. Extra payment required if select CADLink RIP software when purchasing.
Product Specifications
| 6002 STAR IV DTF PET Film Inkjet Printer | ||
| Brand | Sublistar | |
| Model | DTF-6002 STAR IV | |
| Print Head | Using Epson print head, including 400 nozzles/row*8*lines, high quality up to 1800dpi | |
| Print Resolution/Speed | 4pass: 12m2 /hour | |
| 6pass: 8m2/hour | ||
| 8pass: 6m2/hour | ||
| Ink | Types | Water Based Ink, Dye Ink, Sublimation Ink |
| Capacity | 5 Colors: 1.5L*5/color | |
| Media | Maximum Width | 620mm |
| Thickness | 1.5mm to 6mm adjustable | |
| Max Roll Weight | 20kg | |
| Types | PP Synthetic Paper, Vinyl Sheet, Film, Coated Paper, Canvas , Adhesive Vinyl Sheet, Banner and so on. | |
| Media Heater | Front/Mid/Rear Heaters (individually controllable) | |
| Interface | Network Port | |
| RIP Software | Maintop6.1, Photoprint, Print Factory | |
| Voltage | AC110V+/- 10%, AC220V+/-10%, 50/60+/HZ | |
| Operating Environment | Temperature: 20℃- 35℃, Humidity: 35%RH-65%RH | |
| Power | 200w~450w | |
| Dimensions | 1766*750*1513mm (L*W*H) | |
| Height of Worktable | 1062mm | |
| Package size | 1880*1060*740mm (L*W*H) | |
| Net Weight | 190KG | |
| Gross Weight | 210KG | |
| DTF Powder Shaker and Dryer(S10) | ||
| Model | DSP-600 S10 | |
| Operation mode: | PLC(SCM)Touch Screen | |
| Max Width: | 600 mm | |
| Oven Length: | 1079 mm | |
| Oven Temp: | Adjustable | |
| Voltage: | 110v/220v,3phase,60Hz | |
| Power: | 3.5-4Kw | |
| Shaker Size: | 1976mm(L) X 989mm(w) X 908mm(H) | |
