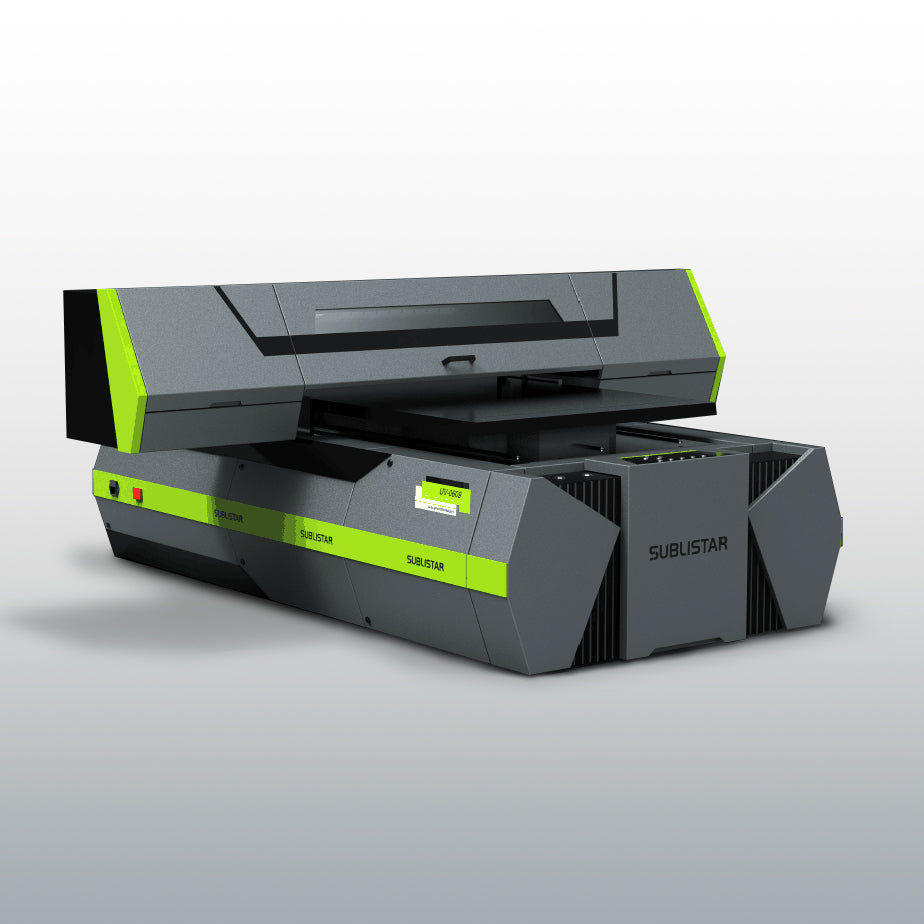

UV 6090F STAR V Flatbed UV Printer Overview
The latest generation UV-6090F Star V is a high-end, high-precision flatbed UV printer, which is specially designed for custom processing enterprises to meet their diverse, high-production, and customized needs. Optional with EPSON I1600-U1/I3200-U1 grayscale piezoelectric print head, which can be used for high-speed perfect output printing up to 2400 DPI. In addition, there are white ink mode and varnish mode optional.
Professional Features - SUBLISTAR Flatbed UV Printer
High-Resolution Printout
Print precision up to 720*2400 dpi, the image quality is delicate, high ink drop printing can be realized, the jetting force is strong, and the performance is stable.

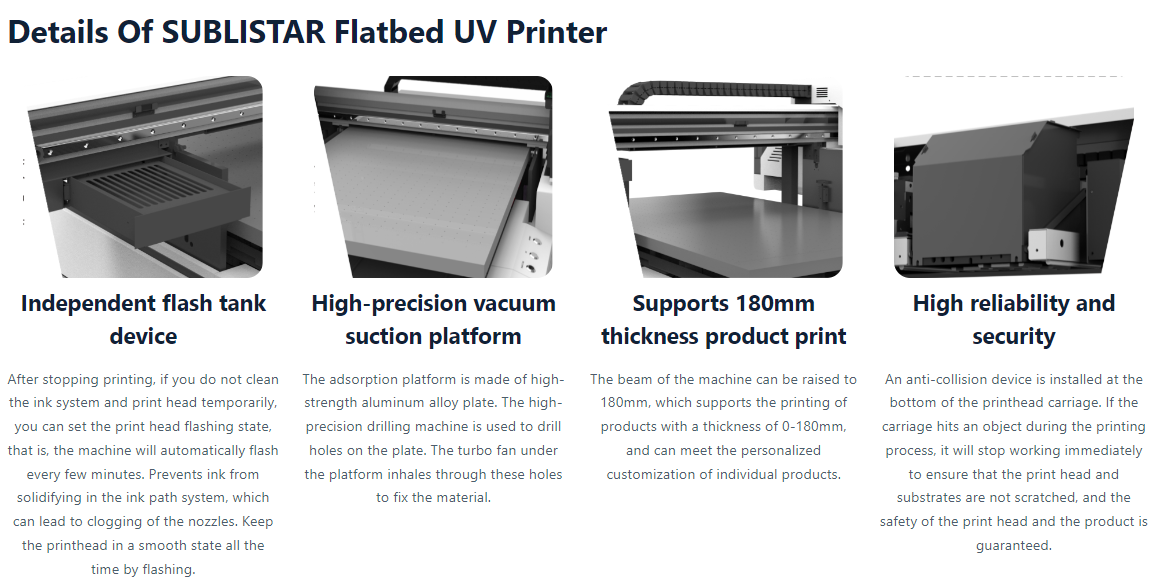

Automatic Lifting Ink Capping Station
Driven by a motor, the position of the sealing head is precisely controlled, and the nozzle is intelligently protected from external damage.
High-Precision Vacuum Suction Platform
Adsorption platform made of high-strength aluminum alloy plate, the turbo fan under the platform absorbs air through the holes to fix the material.
Print Heads Anti-Collision System
Print heads are equipped with an anti-collision sensing device to protect the print heads and print items from being scratched.
Independent Ink Ejection Device
Supports timing ink jetting, effectively prevents ink from solidifying in the ink system and prevents nozzles from clogging.
Siphon Ink Supply System
The ink supply is smooth and stable without splashing ink droplets, ensuring the perfect output for printing jobs.
UV Lamp Protective Cover
Emergency stop when opening the cover during work, Protect eyes from UV light.
Friendly Software Interface
Including calibration, the operation is provided with detailed instructions, newbie friendly.
Engineer Settings Open
Meet the customization and personalized printing settings of professionals.
Applications of Flatbed UV Printer
6090F Star-V Flatbed UV printer is capable of printing directly on rigid substrate media and flexible films, such as toys, phone cases, PVC sheets, acrylic, stainless steel, and more. A flexible solution is ideal for printing high-quality outdoor signage, promotional items, etc.
INCLUDED WITH YOUR PURCHASE:
- 6090F STAR-V Flatbed UV printer
- UV DTF A film: 1 roll (600mm*100m)
- UV DTF B film: 1 rolls (600mm*100m)
- UV DTF Ink: 1set (1000ml*6 C M Y K W V)
- Sublistar UV DTF Rip Software
- Lifetime Technical Support
- Limited 2-year warranty for machine
BONUS: Sublistar UV DTF Instructional Video
BONUS: ICC Profile for SUBLISTAR UV Inks ONLY
Product Specifications - 6090F STAR-V UV Flatbed Printer
| Model | UV-6090F Star V | |
| Print Format | 600*900mm | |
| Print Head | EPSON I1600-U1*3 | EPSON I3200-U1*3 |
| Ink Type | ECO-UV Curing Ink | |
| Print Direction | Single/ Doublet | |
| Production Speed | 2m2/h~5m2/h | 2.5m2/h~8m2/h |
| Print Thickness | 0-180mm | |
| Max Print Resolution | 720*1200dpi | 720*2400dpi |
| Print Mode | C,M,Y,K+W / C,M,Y,K+W+V | |
| Cylinder Print | Support (fixtures/jig required) | |
| High Drop Printing | Up to 3mm | Up to 9mm |
| Software | MainTop, FlexiPRINT, CADlink | |
| Powder Voltage | AC220/110±10, 50HZ~60HZ | |
| File Format | Tiff, Jpg, Eps, Pdf, Png, AI, Psd | |
| Working Environment | Temperature: 16℃-38℃ | |
| Humidity: 35%-65% | ||
| Net Weight | 194KG | |
| Printer Size | 1696mm*1595mm*719mm (L*W*H) | |
| Packaging Size | 1830mm*1750mm*1020mm (L*W*H) | |
| Applications | PVC, PET Film, Acrylic, Wood, Glass, Ceramic, Leather, Plastic, Metal, etc. | |
| Included Accessories | Power cord, network cable, RIP and print management software, instruction manual, etc. | |

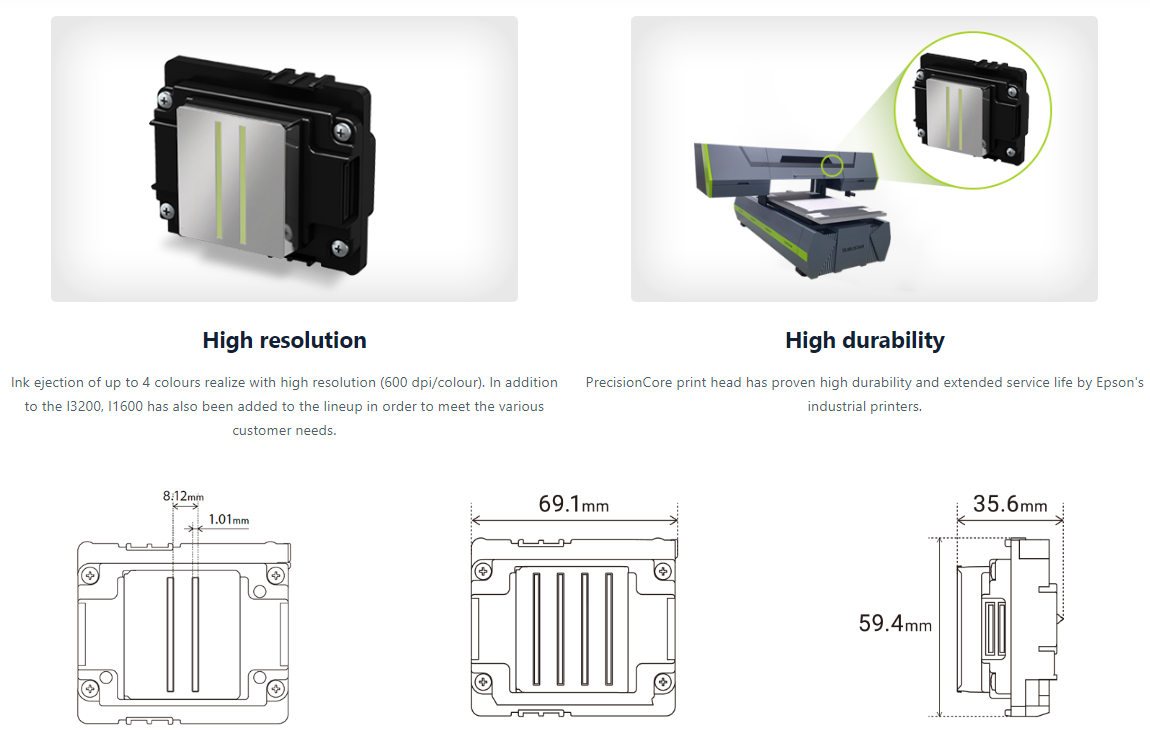

Epson I1600-U1 Print Head for High Droplet Printing

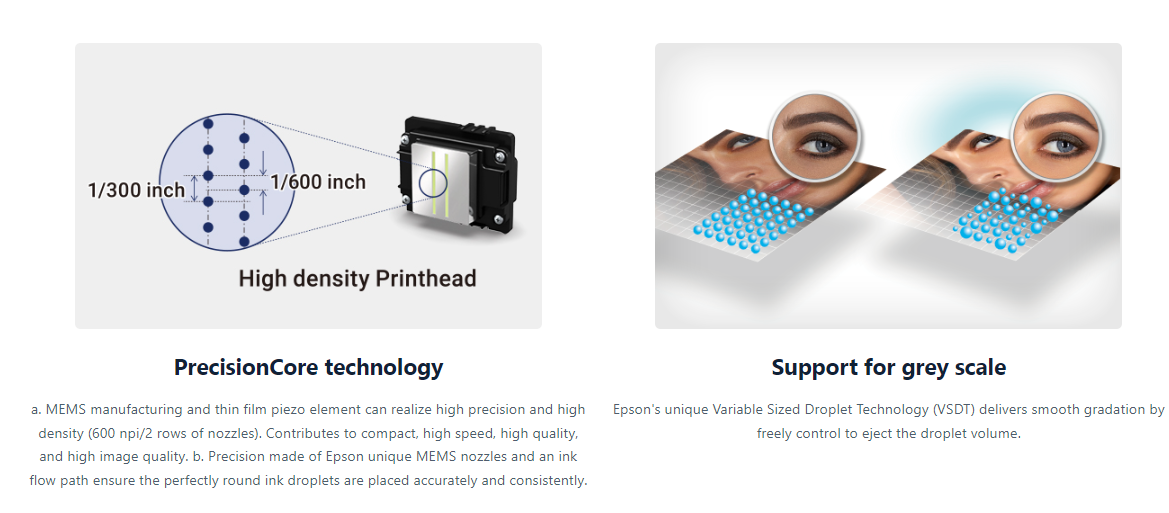

I-Series Printheads: Sublistar UV-STAR V printer can equipped with Epson I1600-U1 print heads. A cost-effective 1.33-inch-wide MEMS head series providing high productivity and high image quality with 600 dpi high-density resolution. Supports high drop printing up to 9mm at the same time.
| Model | I1600-U1 | |
| Compatible ink | UV Ink | |
| Dimensions(WidthxDepthx Height) | 69.1mm x 59.4mm x 35.6mm | |
| Weight(g) | 60 | |
| Nozzle Numbers | 1600 | |
| Length Between Nozzles(inch) | 1/300 | |
| Nozzle Row | 4 rows | |
| Max color/head | 4 colors | |
| Resolution | 300npi/row, 600npi/2row | |
| Effective Printing Width(mm) | 33.8 | |
| Droplet ejection performance(kHz) | Binary | 5 pl（43.2kHz） |
| 3 levels grey scale | 6,12.5 pl（21.6kHz） | |
| 4 levels grey scale | 3.8,6.2,9.3 pl（21.6kHz） | |
| Viscosity range(mPa.s) | 5-7 mPa･s | |
