Sublistar STAR III 600series DTF Printer & Shaker
Subcribe to back in stock notification

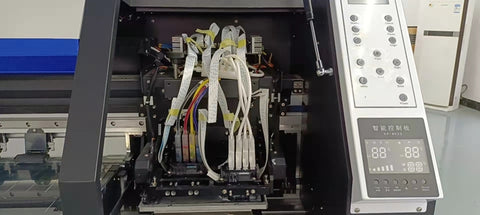

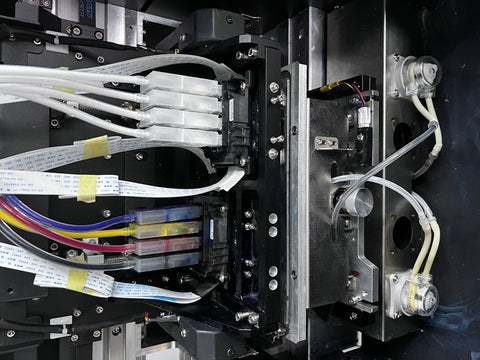

1.EPSON PRECISIONCORE PRINTHEAD
Epson PrecisionCore Printhead for industrial-quality output at impressive production speeds. Stable and low mainte_x005fnance time.
|2.MUTE LINEAR GUIDE RAIL
Using high quality wider mute linear guide rail, the movement is more stable and the service life is longer.

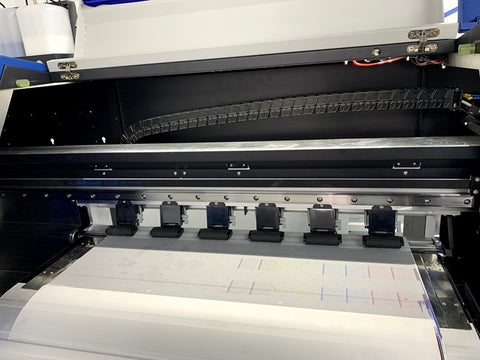

New pinch roller structure more wider than before, brings more stable feeding precision.

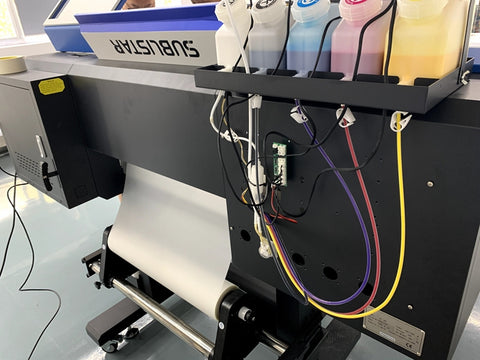

|4.ADVANCED BULK INK SYSTEM
Equipped with a bulk ink delivery system, that reduce ink replenishment frequency and cost.
|5.INK TUBE INK LIMITED SYSTEM
Prevent print heads excessively flash spray, damage the heads.
|6.INK TUBE INK LIMITED SYSTEM
Maintop 6.1, Photoprint, Print Factory, (CADIink
Rip extra charge)
|7.SMART PLC TOUCH SCREEN
Equipped with an easy-to-use touch screen. Navigate the menu by simply touching the desired option.

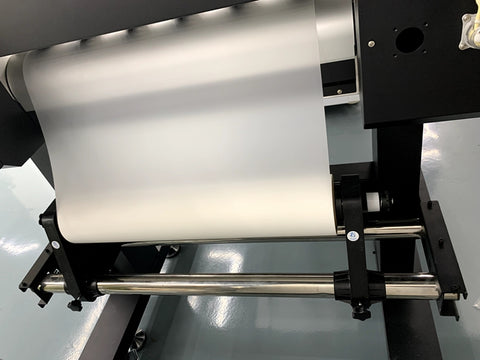

|8.TENSION FEED/TAKE-UP REEL
The paper feed and take-up with tension system allows you to complete production unattended fora simple and precise workflow from printing to loading and feeding through the roll-to-roll securely wound.
Film: 0.6m*100m/0.3m*100m roll size (cold peel)
Powder: 2 kg (4.4 lbs)
Ink: 1000ml*6 (c,m,y,k+w)
Sublistar DTF environment settings
Sublistar DTF instructional video
Sublistar DTF PET Film Inkjet Printer
|Item Model||DTF-6002 STAR III||DTF-6003 STAR III||DTF-6004 STAR III|
|Print Resolution/Speed||4pass: 10m2 - 15m2 /hour||4pass: 12m2 /hour||4pass: 22m2 - 34m2/hour|
|6pass: 6.5m2- 10m2/hour||6pass: 8m2/hour||6pass: 16m2 - 24m2 /hour|
|8pass: 3.5m2 - 6m2/hour||8pass: 6m2/hour||8pass: 12m2 - 16m2/hour|
|Ink||Types||Water Based Ink, Dye Ink, Sublimation Ink|
|Capacity||5 Colors: 1.5L*5/color||9 Colors: 1.5L*9/color||5 Colors: 1.5L*9/color|
|Thickness||1.5mm to 6mm adjustable|
|Max Roll Weight||20KG|
|Types||PP Synthetic Paper, Vinyl Sheet, Film, Coated Paper, Canvas , Adhesive Vinyl Sheet, Banner and so on|
|Media Heater||Front/Mid/Rear Heaters (individually controllable)|
|RIP Software||Maintop6.1, Photoprint, Print Factory|
|Voltage||AC110V+/- 10%, AC220V+/-10%, 50/60+/HZ|
|Operating Environment||Temperature: 20℃- 35℃, Humidity: 35%RH-65%RH|
|Height of Worktable||1062mm|
|Package size||1880*970*740mm (L*W*H)|
|DTF Powder Shaker and Dryer（S8）|
|Operation mode:||PLC Touch Screen|
|Oven Temp.:||0-400°C (be adjustbale)|
|Voltage:||110v/220v, 3phase, 60Hz|
|Shaker Size:||1850mm L x 1150mm W (with Air Filter) x 1050mm H|
|All Services In One Place||
We offer a dedicated team of professionals to share video/screen share to ensure you get set up and print right away.
On/offline Training Support
We provide important after-sales support and training, free online training, and on-site coaching to customers worldwide. There are several video programs available as training resources.
"Heads and All" Warranty
We provide a 6-month free warranty for print heads, and all printers are backed by a standard 24 months. You can also extend the warranty for peace of mind.
