Sublistar STAR III 450 DTF Printer & Shaker
Subcribe to back in stock notification
|model||DTF-450 STAR-III||Detail images|

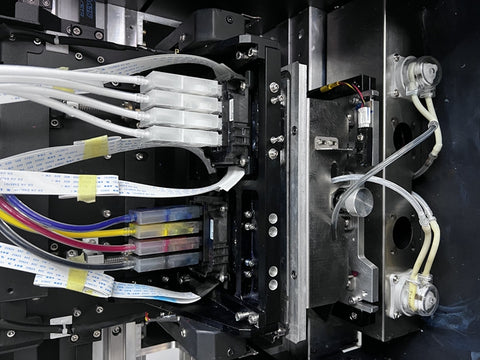

1.EPSON PRECISIONCORE PRINTHEAD
Epson PrecisionCore Printhead for industrial-quality output at impressive production speeds. Stable and low mainte_x005fnance time.

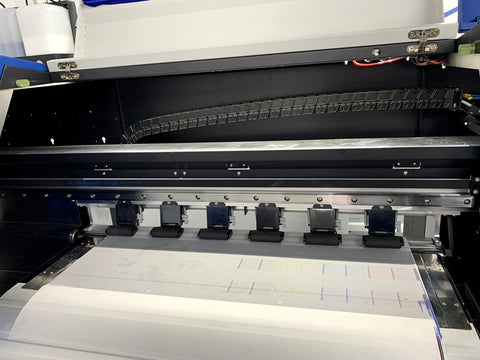

|2.MUTE LINEAR GUIDE RAIL
Using high quality wider mute linear guide rail, the movement is more stable and the service life is longer.

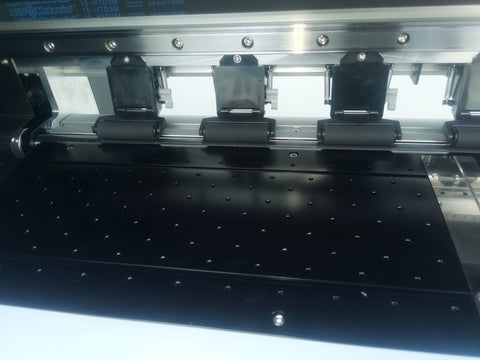

New pinch roller structure more wider than before, brings more stable feeding precision.

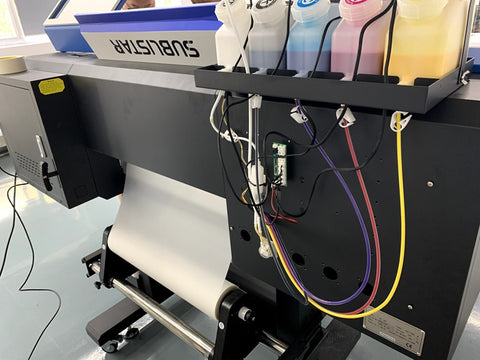

|4.ADVANCED BULK INK SYSTEM
Equipped with a bulk ink delivery system, that reduce ink replenishment frequency and cost.
|5.INK TUBE INK LIMITED SYSTEM
Prevent print heads excessively flash spray, damage the heads.
|6.INK TUBE INK LIMITED SYSTEM
Maintop 6.1, Photoprint, Print Factory, (CADIink
Rip extra charge)

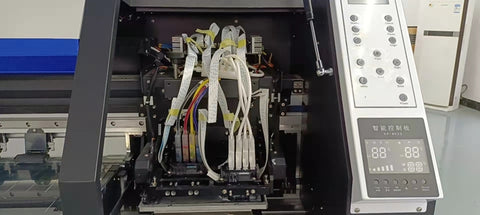

|7.SMART PLC TOUCH SCREEN
Equipped with an easy-to-use touch screen. Navigate the menu by simply touching the desired option.

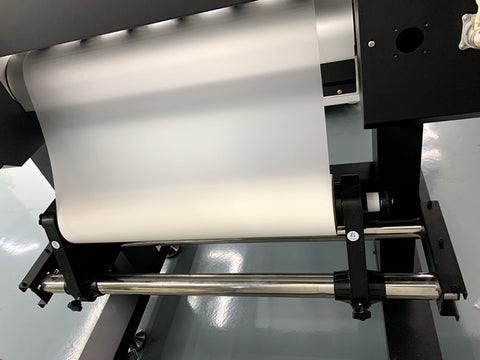

|8.TENSION FEED/TAKE-UP REEL
The paper feed and take-up with tension system allows you to complete production unattended fora simple and precise workflow from printing to loading and feeding through the roll-to-roll securely wound.
Film: 0.6m*100m/0.3m*100m roll size (cold peel)
Powder: 2 kg (4.4 lbs)
Ink: 1000ml*6 (c,m,y,k+w)
Sublistar DTF environment settings
Sublistar DTF instructional video
|Item Model||DTF-450 STAR III|
|Print Head||Using Epson print head, including 400 nozzles/row*8*lines, high quality up to 1800dpi|
|Print Resolution/Speed||4pass: 8m2 - 12m2 /hour|
|6pass: 5.5m2 - 8m2/hour|
|8pass: 3m2 - 5m2/hour|
|Ink||Water Based Ink, Dye Ink, Sublimation Ink|
|5 Colors: 1.5L*5/color|
|1.5mm to 6mm adjustable|
|PP Synthetic Paper, Vinyl Sheet, Film, Coated Paper, Canvas , Adhesive Vinyl Sheet, Banner and so on|
|Media Heater||Front/Mid/Rear Heaters (individually controllable)|
|RIP Software||Maintop6.1, Photoprint, Print Factory|
|Voltage||AC110V+/- 10%, AC220V+/-10%, 50/60+/HZ|
|Operating Environment||Temperature: 20℃- 35℃, Humidity: 35%RH-65%RH|
|DTF Powder Shaker and Dryer（S8）|
|Operation mode:||PLC Touch Screen|
|Voltage:||110v/220v, 3phase, 60Hz|
|Shaker Size:||1580mm L x 780mm W(with Air Filter) x 670mm H|
|All Services In One Place||
We offer a dedicated team of professionals to share video/screen share to ensure you get set up and print right away.
On/offline Training Support
We provide important after-sales support and training, free online training, and on-site coaching to customers worldwide. There are several video programs available as training resources.
"Heads and All" Warranty
We provide a 6-month free warranty for print heads, and all printers are backed by a standard 24 months. You can also extend the warranty for peace of mind.
