DTG DTX-II Printer Overview
DTX-II double-station DTG printer can fully realize stable printing, low ink consumption and high added value of output products. The finished product realistically restores the design, perfectly combines with the garment, and is natural and vivid. To meet the customer’s high-volume production printing needs, easy to operate, easy to get started and friendly to beginners.
DTG DTX-II Printer Features
- One-Click Adjustment Function: For different clothing fabrics of different sizes, the one-click-to-adjust function can effectively and quickly adjust the printing distance, easy to operate.
-
Industrial-Grade Hardware: High-quality sheet metal parts can ensure the stability of machine operation, and the machine is more durable.
- Dual-Station Printing: Dual-station alternate printing can simultaneously meet the needs of staggered printing and fabric spreading, saving a lot of printing time.
- Bi-Directional Printing Function: Bi-directional printing upgrade simplifies bi-directional calibration, which can be completed in one calibration, reduces the appearance of white background, and improves the stability of mass production.
- Easy-to-Use Software: The software is full of features to ensure accurate color, create white backing with ease, archive at any time to keep an eye on costs, and adjust the white ink concentration to achieve different print results.
DTG Printing Process
- Spray with Pre-Treatment Fluid： First, use a hot press to preheat the clothes that need to be printed, flatten them and remove excess moisture from the clothes. Then spray the pre-treatment solution evenly, and then use a hot press to dry the clothes again.
- Adjust The Color of The Design： Pay attention to the adjustment and calibration of colors in the design pattern to ensure consistency between the output and the designed colors.
- Direct Printing： Direct printing, through computer instructions, the direct spraying machine will directly print design patterns on pure cotton fabrics.
- Ironing to Fix The Color： After hot pressing for color fixation and direct printing, a hot press is also required to assist in re-pressing once, which helps to naturally combine the pigment with the clothing and ensure the durability of the clothing printing.
DTG Printer Applications
DTG printer DTX-II can fully meet the needs of batch printing customization, faster speed, can be easily in all kinds of colors on the direct printing, not through the bottom, and no leakage of white edges. It can be widely used on all kinds of cotton fabrics, cotton T-shirts, cotton pillows, cotton canvas bags, and so on.
INCLUDED WITH YOUR PURCHASE:
- SUBLISTAR DTG DTX-II Direct-to-garment Printer
- Installation Kits
- 1 Power Cord/ USB interface data cable
- Lifetime Technical Support
- Limited 2-year warranty for machine and limited 3~6 months warranty on the Printhead (Please refer to the warranty info)
BONUS: Online Video Tutorials
BONUS: ICC Profile for SUBLISTAR Inks ONLY
NOTE: Option to choose an easy RIP software (MainTop/ PhotoPrint/ CADLink)
* PhotoPrint/ MainTop RIP software is free included. Extra payment required if select CADLink RIP software when purchasing.
Machine Parameter
SUBLISTAR DTG DTX-II | |
| Brand | SUBLISTAR |
| Model Type | DTG DTX-II |
| Print Head | I3200 |
| Print Resolution | 2400DPI |
| Head Quantity | 3 |
| Print model | White and Color |
| Printing Direction | Single and Double |
| Ink | Pigment Ink |
| Working Environment | Temperature: 10°C~30°C, Humidity: 35%~65% |
| Max Printing Scale | 370*420mm |
| Weight | 460kg |
| Print Thickness | 0-6mm |

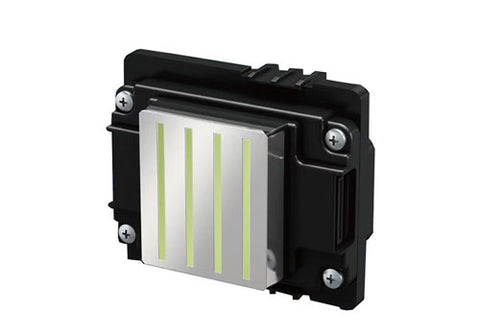

Epson I3200-A1 Print Head
The Epson I3200 printhead, which is standard on the DTG printer DTX-II, delivers excellent direct print results on natural fabrics such as cotton, with high resolution, vibrant color output, and comfortable, breathable wear.
| Model | I3200 |
| Ink Types | Water-based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Active Nozzles | 3200(8 lines x 400 nozzles) |
| Max Resolution | i3200 E1 |
| Drop Volume | 12.3 pl |
| Max color/head | 4colors |
| Resolution | 300npi/1row 600npi/2row |
| Effective Printing Width(mm) | 33.8 |
| Jet Frequency(kHz) | 43.2(single dot), 21.6(multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
