Sublistar 1.8m Industrial Sublimation Printer

$9,420.00
SKU:
Availability : In Stock Pre order Out of stock
  • Print Head: 8*I3200 Print Heads
  • Max Print Size: 1800mm Print Width.
  • Max Print Speed: 95 m2/h

Print Head: 1804TX

1804TX
1808TX
Overview

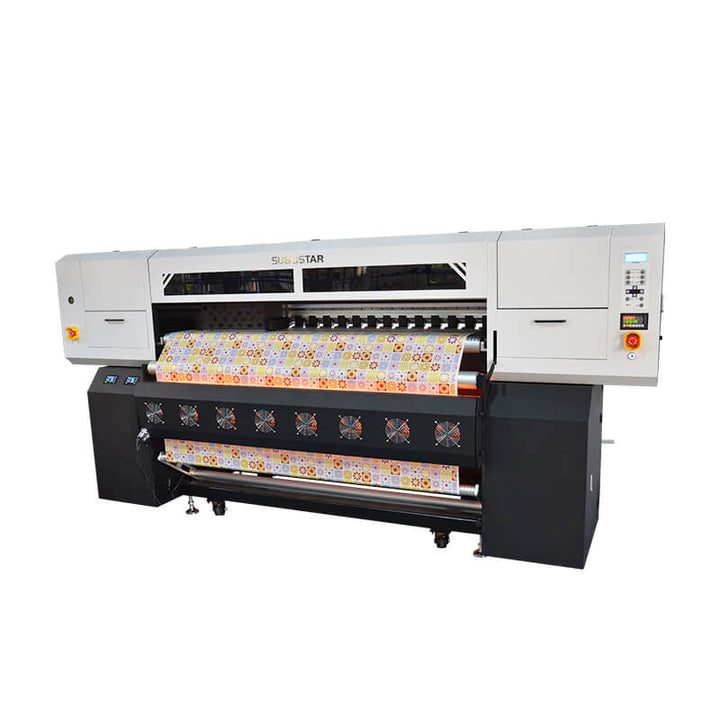

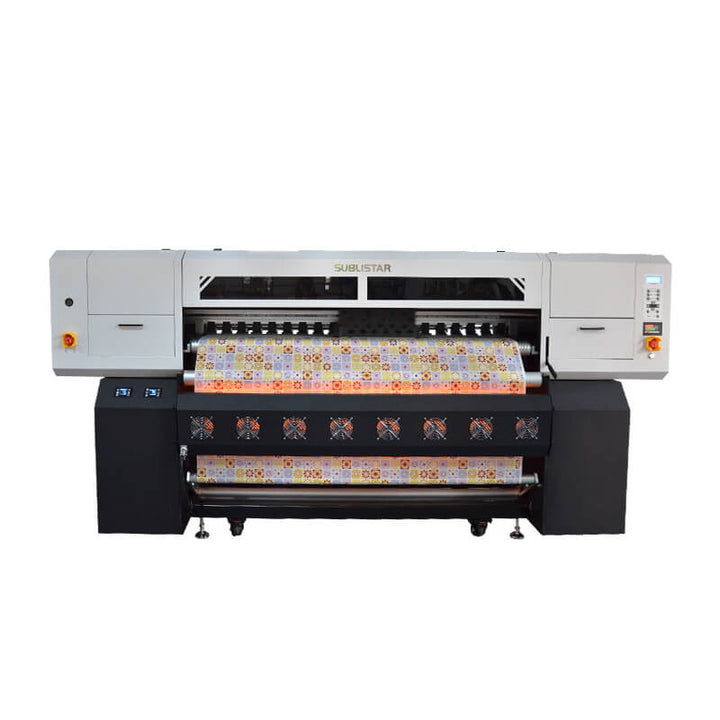

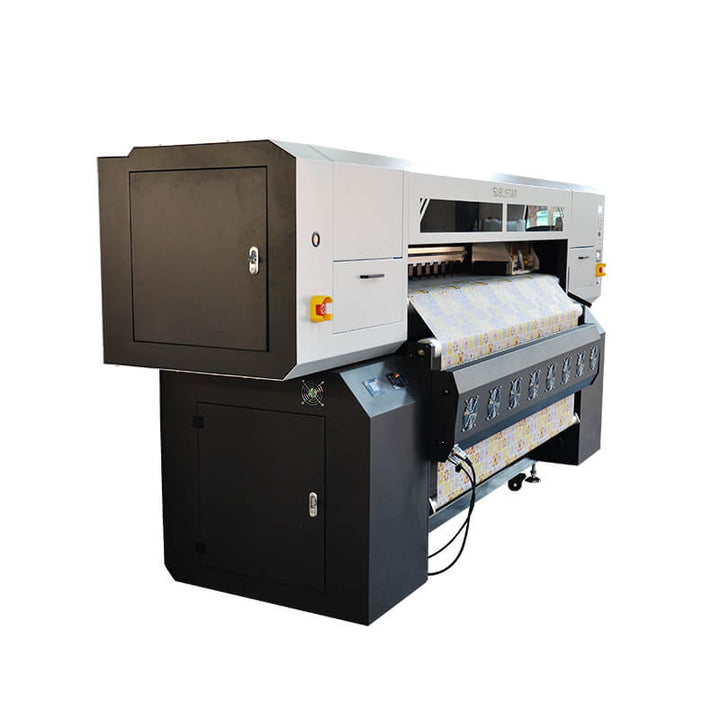

SUB-1803TX large format sublimation printer max printing width up to 1.8m, ideal for Garments, Apparel, Soft Signage, sportswear, Flag, Tent, Blanket, Curtain, etc Polyester-based Fabric.

Top Features

  • Control panel for heating control, better effectively control and convenient for power adjustment
  • 220cc secondary ink cartridge + 5L large ink tank: stable ink supply system to guarantee amazing printing speed
  • Wider bottom box structure: the right box supports the placement of computer.
  • Controllable Inverter motor
  • Extra wide and thick main beam with double THK mute rail guide

Wide Application Range             Automatic

SUB-1.8m sublimation printer machine is ideal for Garments, Apparel, Soft Signage, Mouse pads, Carpet, Flag, Tent, Blanket, Curtain, Polyester Fabric rolls or piece.

  • 8 Epson I3200-A1 printhead,3 pass speed can reach up to 95 m2/h.
  • Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink fluently.
  • Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function.
  • With help of heat transfer machine,pictures can be transferred to many materials, such as polyester,chiffon, silk, and flag banner.

Product Features-1.8m Industrial Sublimation Printer

Epson I3200 Print Head

Equipped with advanced electrical board system, standard 6pcs i3200 print heads, At its heart is a PrecisionCore MicroTFP(Thin Film Piezo)chip, which has two rows of 400 nozzles, 800 in total, at a rate of 600 nozzles per inch on a 33.8mm line.



FAQ

Q: What is the print head of this machine?
A: It is Epson I3200 print head.

Q: How many print heads of this machine?
A:It is equipped with 8 print heads.

Q: What materials does this machine print on?
A: This printer can be applied to garments, apperal, soft signage and other polyester-based fabric.

Q: What is the max print size?
A: Up to 1800mm print width

Q: How do I order a machine from you?
A: After you confirm the order details, we will send you a pro-forma invoice for confirmation. After payment is received, we will arrange production.
The shipping method is communicated to you and the final shipping product will be sent out within the agreed time.

Q: What are your payment methods?
A: T/T, D/P, D/A, Paypal, Western Union.

Q: How much tax should we pay?
A: Please get in touch with your local customs or import agent for details.

Q: Can we be the exclusive distributor of your machines?
A: We look forward to working closely with you. After you have ordered multiple machines and can provide superior after-sales service, we can begin discussing a distribution relationship.

Specifications

Product Specifications-1.8m Industrial Sublimation Printer



ModelSUB-1808TXSUB–2208TX
Print Head Eight i3200 Print Heads
Printing Technology Piezoelectric Inkjet
 Width72in. (1830mm)87.8 in(223D mm)
Acceptable MediaThicknessMaximum 39 mils (1 mm)
 Maximum Media Load3000m
Printing Width 70.8 in. (1800 mm)86.6 in.(2200 mm)
 TypeDye Sublimation Ink
Ink CartridgesCapacity4*4 CISS (220ml ink cartridge with 5L ink tank)
 Color4 colors (Cyan, Magenta, Yellow, Black)
Printing Resolution Maximum 3600 dpi
Printing Speed 1 pass(360x1200dpi): 320 sqm/h 2pass(360x2400dpi): 180 sqm/h 3pass(360x3600dpi): 100 sqm/h1pass(360x1200dpi): 346 sqm/h 2pass(360x2400dpi): 196 sqm/h 3pass(360x3600dpi): 120 sqm/h
Media Heating System Integrated post heater & Infrared Dryer & Fan system
Interface USB 3.0
Power Supply AC 220V ±10%, 50/60 Hz
Dimensions(with stand)

133.86(L)x51.18(W)x78.74(H) in.

(3400(L)x1300(W)x2000(H) mm )

149.60(L)x51.18(W)x78.74(H) in.

3800(L)x1300(W)x2000(H) mm )

Weight(with stand) 1433 lb. (650 kg)1653 lb. (750 kg)
Package Dimensions

133.86(L)x55.12(W)x82.68(H) in.

3600(L)x1400(W)x2100(H) mm )

157.48(L)x55.12(W)x82.68(H) in.

4000(L)x1400(W)x2100(H) mm )

Package Weight 1653 lb. (750 kg)18741b. (850 kg)
EnvironmentPower onTemperature: 59 T to 90 7 [15’C to 32–C] / Humidity: 35 to 80% (no condensation)
 Power offTemperature: 41 T to 104 F [5 C to 40 C] / Humidity: 20 to 80% (no condensation)
Accessories USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.
