Overview

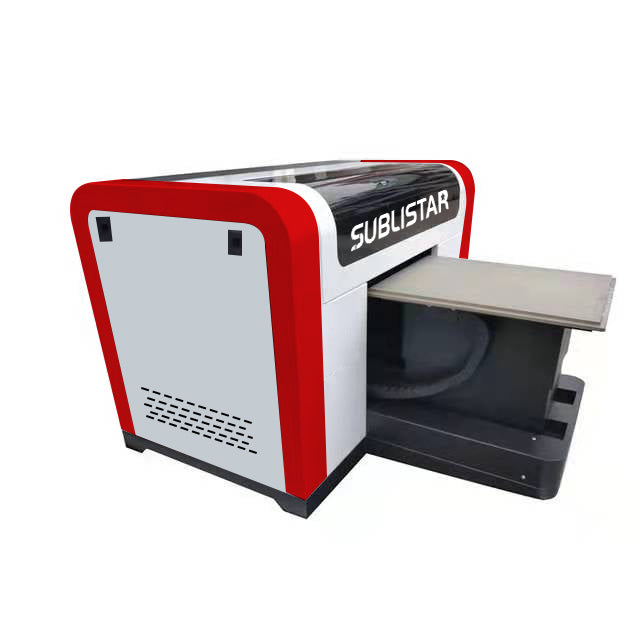

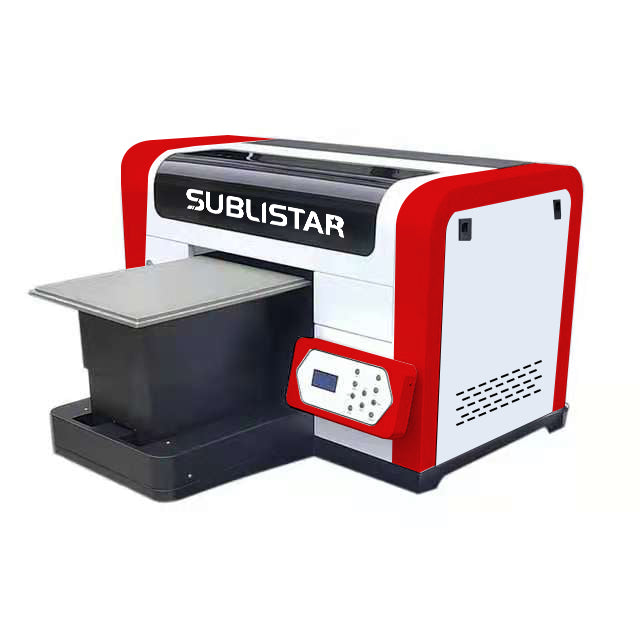

Desktop 3545F UV DTF flatbed printer, the best choice for starting a small business, which is the ideal solution for DIY customized printing on products, which is a multi-functional LED UV flatbed printer, that can print on all kinds of surfaces, suitable for printing on both rigid and flexible material, like phone cases, acrylic, metal, gifts packaging, plastic card, PVC, glass, wood, paper, etc.
Explore 3545F STAR IV Flatbed UV Printer Core Technologies
The 3545F STAR-IV Flatbed UV printer delivers high image quality, productivity, and reliability in a highly intuitive design,
providing advanced features for the apparel printing industry, including:
Professional Features - Star IV UV Flatbed Printer
- Control Panel
One-key control functional, auto cleaning/ nozzles, checking/ pause printing.
- Air Vacuum Platform
Aluminum alloy Air vacuum platform, light materials firmly. Scratch-resistant, no-deformed, and no broken, at the same time it is easy to clean.
- Anti-UV 150ml Ink Cartridges
Anti-UV 150ml CMYK LC LM White ink cartridges, it is good for ink condition for use. Especially the White ink cartridges with a cycle system to avoid clogging the print head.
- IGUS Drag Chain From Germany
IGUS drag chain itself is a guarantee of quality, it takes the printer stability to a new level.
- Servo Motor
Faster speed, More accurate position and accuracy.
- Advanced Mainboard
System stability, highly integrated function, effective protection circuit.
What You Can Do With UV Flatbed Printer
3545F STAR-IV UV Printer is equipped with 6-color ink, which can realize light cyan, light magenta and fluorescent color printing. With Sublistar’s special printing materials, a variety of colorful printing effects can be achieved. UV-LED direct-to-substrate printing is one of the fastest-growing segments in the printing industry — offering huge advantages when it comes to cost, print quality, and the ability to customize unlimited types of substrates.
3545F STAR-IV Flatbed UV Printer Process
The STAR IV 3545F Flatbed UV Printer supports two printing methods, one directly on the surface and the other with the help of AB film transfer. Shown here with AB film overlay printing, another is detailed on the Star V Flatbed UV 6090 Printer page.
- Design The Drawing: Design the sample or design the required pattern according to the customer’s demand.
- Print on A Film: Fix the A-film on the printing platform, start the printing command, and print directly on the A-film.
- Laminating B Film: After printing, use the laminator to laminate the B film.
- Cutting: Cut the printed AB film into pieces for easy use.
- Transfer: Finally, it can be transferred on the surface of glass, ceramic cups, metal insulation cups, and other hard substances.
INCLUDED WITH YOUR PURCHASE:
- STAR-IV UV-3545F Flatbed UV printer
- UV DTF A film: 1 roll (300mm/600mm*100m)
- UV DTF B film: 1 rolls (300mm/600mm*100m)
- Sublistar UV DTF Rip Software
- Lifetime Technical Support
- Limited 2-year warranty for machine
BONUS: Sublistar UV DTF Instructional Video
BONUS: ICC Profile for SUBLISTAR UV Inks ONLY
Product Specifications - 3545F Star IV UV Flatbed Printer
| Model | UV-3545F STAR-IV | ||
| Printer Head | Epson XP600 | ||
| Printing Configuration | White+Color | ||
| Output Accuracy | 360*720 dpi/ 360* 1080 dpi / 720*720 dpi | ||
| Speed | (4PASS) Draft mode | 3m²/H | 1.5mins/pc |
| (6PASS) Standard mode | 2m²/H | 2mins/pc | |
| (8PASS) Accuracy mode | 1m²/H | 2.5mins/pc | |
| Ink Type | UV Hard/Neutral/Soft | ||
| Ink Configuration | UV | CCMMYK+WWWWWW | |
| Pigment Ink | CCMMYK+WWWWWW | ||
| Ink Bottle Configuration | 500ml bottle for ink supply | ||
| RIP Software | Photoprint | ||
| Color Control | International standard ICC color control | ||
| PC Requirement | i5/i7,Discrete graphics | ||
| File Format | TIFF,JPEG,JPG,PNG | ||
| Operating System | Windows 7 | ||
| Bearing Material | Suction platform adsorption | ||
| Maximum Print Range | 450*350MM | ||
| Supply Ink System | Positive pressure ink supply system | ||
| Maximum Print Height | 100MM | ||
| Data Interface | USB2.0/ RJ45 Network cable interface | ||
| Machine | 980(L) *1070( W ) *620( H ) MM | ||
| Packing Box | 1000 (L) *1100 (W) *700 (H) MM | ||
| Net Weight | 120KG | ||
| Gross Weight | 180KG | ||
