Sublistar Eco Star III 600series DTF Printer & Shaker
3
sold in last
10
hours
$14,603.98
Epson I3200-A1 Print Head Model I3200-A1 DTF-450 Ultra I using Epson I3200 print heads. Epson I3200 head has 3200 nozzles, resolution 600npi, jetting frequency are higher than DX5 and xp600, and also color saturation, printing speed, printing accuracy are better, and the price is cheap....
customers are viewing this product
Product details
Epson I3200-A1 Print Head |
Model | I3200-A1 |
| DTF-450 Ultra I using Epson I3200 print heads. Epson I3200 head has 3200 nozzles, resolution 600npi, jetting frequency are higher than DX5 and xp600, and also color saturation, printing speed, printing accuracy are better, and the price is cheap. Very cost-effective. | Ink Types | Water based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 | |
| Weight(g) | 82 | |
| Nozzle Numbers | 3200 | |
 |
Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8row | |
| Max color/head | 4colors | |
| Resolution | 300npi/1row 600npi/2row | |
| Effective Printing Width(mm) | 33.8 | |
| Jet Freqency(kHz) | 43.2(single dot), 21.6(multi dot) | |
| Ink Drops(pl) | 3.8-6-12(9.4) | |
| Ink Viscosity(mPa.s) | 3~4 |

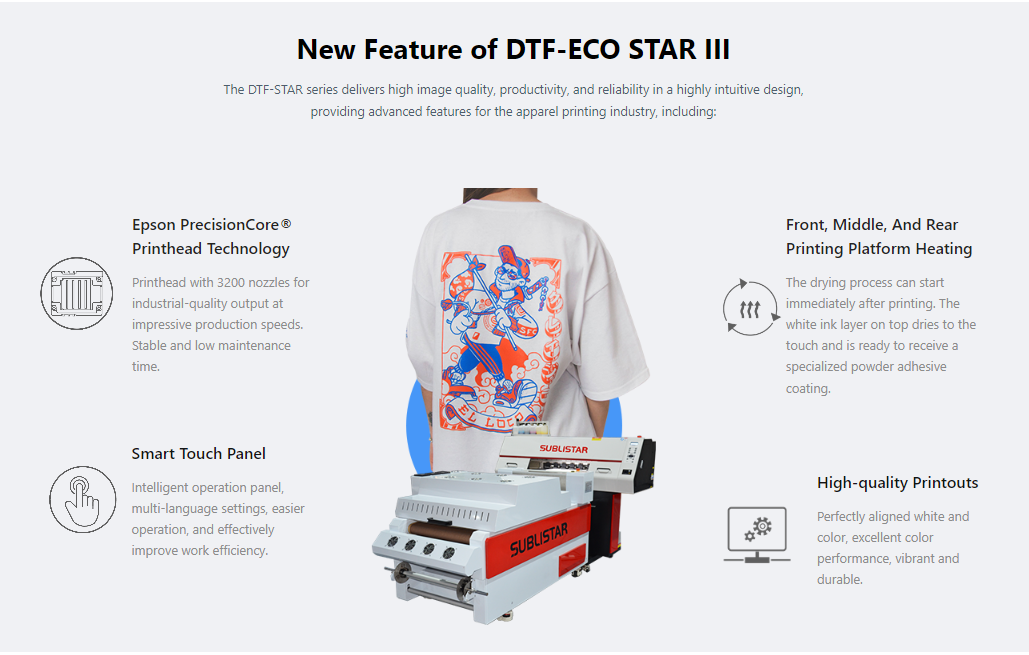

New Feature
| DTF-STAR series has greatly improved printing technology: Front, middle and rear heating， White ink filtration and circulation system， Cart collision avoidance function， THK mute rail， and Smart touch panel. Which improves the stability of the machine, prolongs the service life of machine parts, and makes the machine more efficient. | |
| With three-stage heating in the front, middle, and rear, the drying process can start immediately after printing. The white ink layer on top is dry to the touch and can accept a specialized powder adhesive coating. |  |

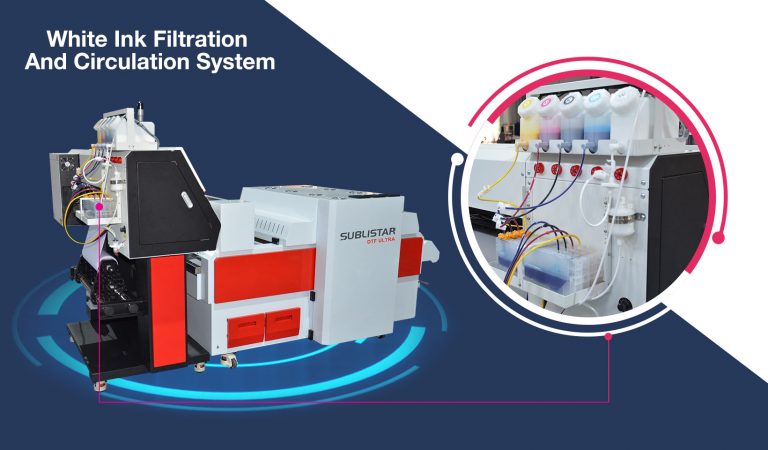

| The continuous circulation of white ink can effectively prevent precipitation and reduce the probability of clogging the print head. After effective filtration, it can effectively prolong the service life of the print head and save costs. |  |

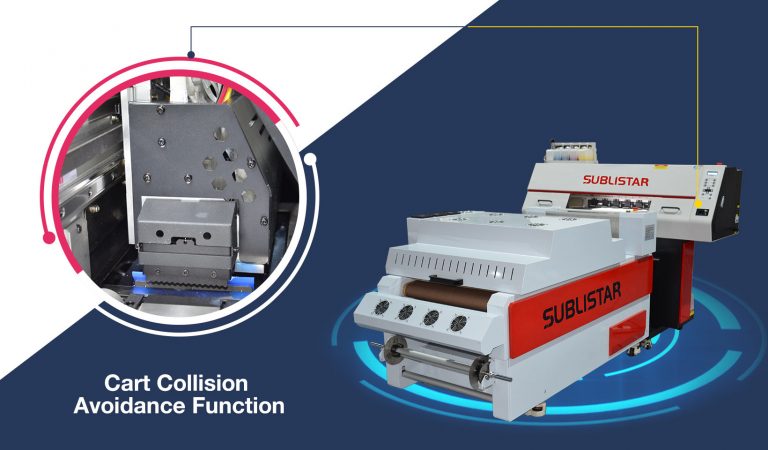

| The anti-collision function of the trolley can effectively protect the nozzle, greatly delay the damage of the nozzle, prolong the use time of the nozzle, and save the production cost. |
 |
|

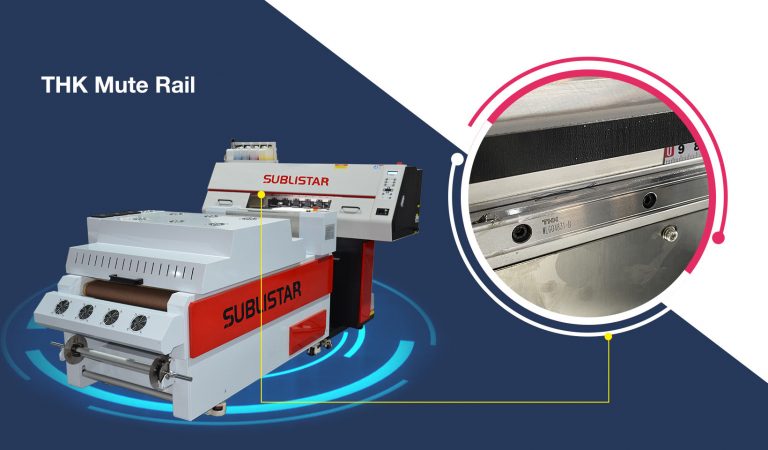

Using Japan's high-precision mute guide rail, the operation is more stable and the noise is low. Intelligent operation panel, multi-language settings, easier operation, and effectively improve work efficiency. |
 |
Machine Parameter
| DTF-ECO STAR III PET Film Inkjet Printer | ||||
| Item Model | DTF-ECO STAR III | |||
| Print Head | Using Epson print head, including 400 nozzles/row*8*lines, high quality up to 1800dpi | |||
| Print Resolution/Speed | 4Pass: 12㎡/hour | |||
| 6Pass: 8㎡/hour | ||||
| 8Pass: 6㎡/hour | ||||
| Media | Maximum Width | 610mm | ||
| Thickness | 1.5mm to 6mm adjustable | |||
| Max Roll Weight | 20kg | |||
| Types | PP Synthetic Paper, VinylSheet, Film, Coated Paper, Canvas, Adhesive Vinyl Sheet, Banner and so on. | |||
| Media Heater | Front/Mid/Rear Heater(individually controllable) | |||
| Interface | Network port | |||
| RIP Software | Maintop 6.1, Photoprint, | |||
| Voltage | AC110V+/- 10%, AC220V+/-10%, 50/60+/HZ | |||
| Operating Environment | Temperature: 20℃- 35℃, Humidity: 35%RH-65%RH | |||
| Power | 200W-450W | |||
| Dimensions | 1620*740*1350mm(L*M*H) | |||
| Height of Worktable | 1062mm | |||
| Package size | 1710*760*1440mm(L*W*H) | |||
| Net Weight | 140KG | |||
| Gross Weight | 200KG | |||
| DTF Powder Shaker and Dryer（S8） | ||||
| Model: | S8-600 | |||
| Operation mode: | PLC Touch Screen | |||
| Max Width: | 600mm | |||
| Oven Length: | 1079mm | |||
| Oven Temp: | 0-400°C (be adjustbale) | |||
| Voltage: | 110v/220v, 3phase, 60Hz | |||
| Power: | 4KW | |||
| Shaker Size: | 1850mm L x 1150mm W (with Air Filter) x 1050mm H | |||
| Shaker Weight: | 320kg | |||
Show More
1 Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
DTF Starter Kit
Film: 0.6m*100m/0.3m*100m roll size (cold peel) Powder: 2 kg (4.4 lbs) Ink: 1000ml*6 (c,m,y,k+w)
Rip Software
Nam libero tempore, cum soluta nobis est Buy a machine and you will get a $500 worth of rip softwarefor free. CADlink, SAI FLEXI, Acrorip, MainTop for option.
Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
| All Services In One Place |
Onboarding Service We offer a dedicated team of professionals to share video/screen share to ensure you get set up and print right away. |
|
On/offline Training Support We provide important after-sales support and training, free online training, and on-site coaching to customers worldwide. There are several video programs available as training resources. |
|
|
"Heads and All" Warranty We provide a 6-month free warranty for print heads, and all printers are backed by a standard 24 months. You can also extend the warranty for peace of mind. |
