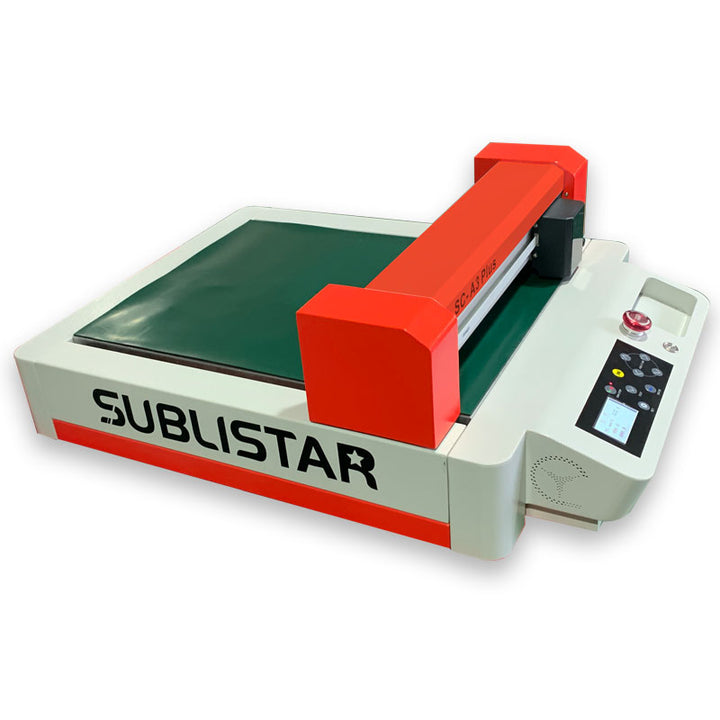

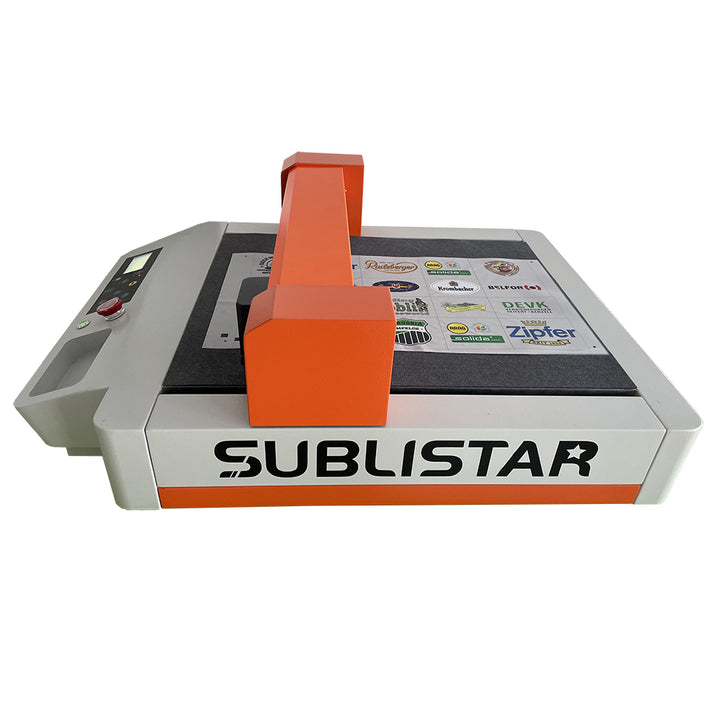

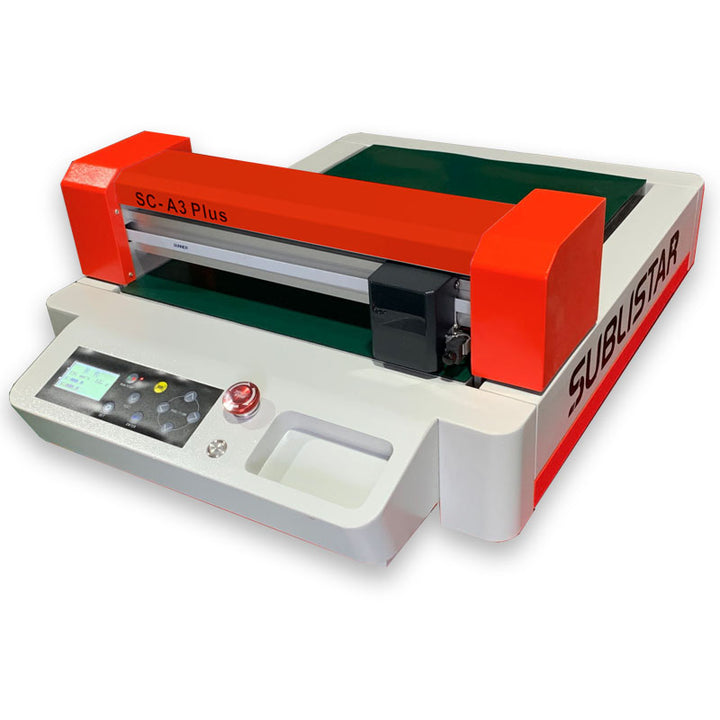

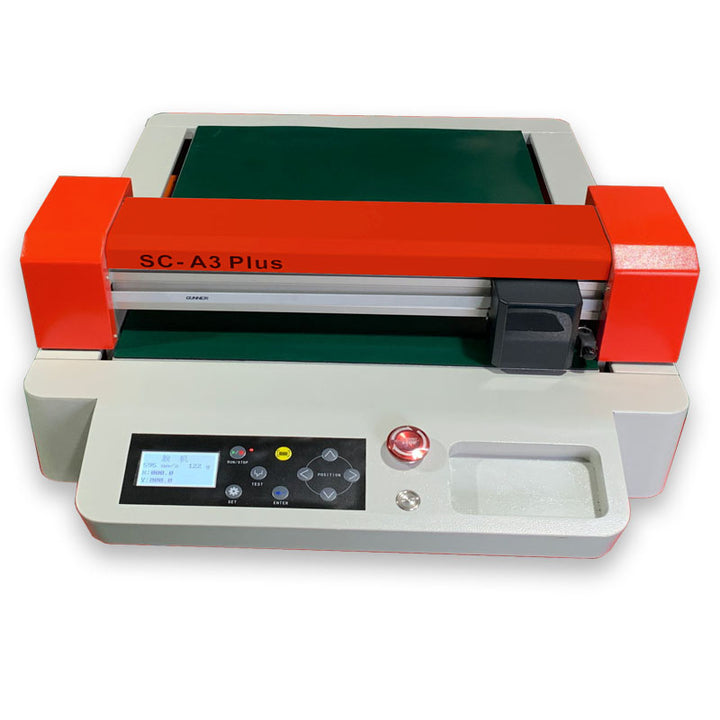

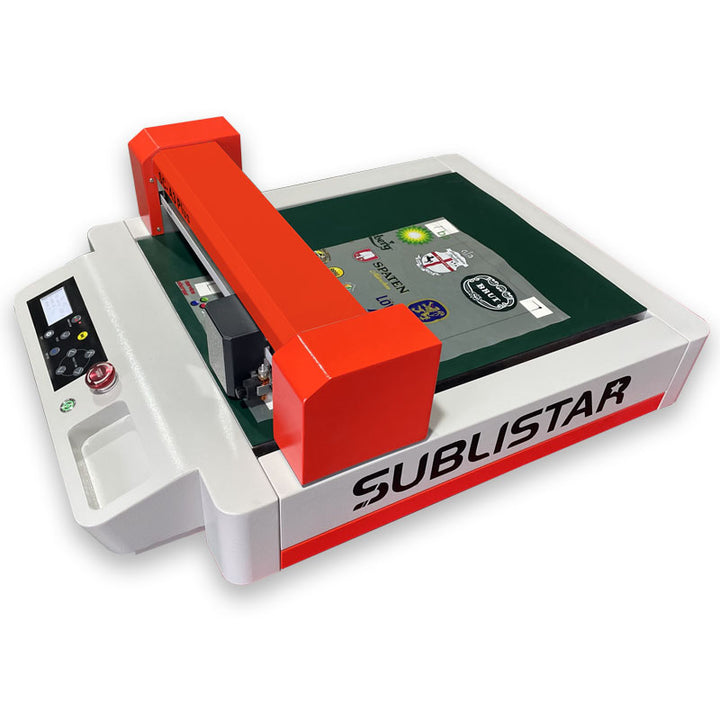

A3 CNC flatbed DTF cutter with conveyor feeding. It is mainly used to cut soft media without a cutting die. And it is an efficient solution for perforation cutting, half-cutting, creasing, marking, etc.
Top Features:
- VACUUM SYSTEM – With strong airflow, the DTF cutter can hold down the media flat and tightly against the tabletop so that the tool carriage can perform fast, accurate cutting and plotting.
- DOTTED LINES CUTTING – Typically available for media with 2 layers and also kinds of paper.
- HALF CUT /PERF CUT – Half cut / Perforation cut is available, every time you may carry out either one or both.
- ONE-CLICK TO INSTALL PRINT DRIVER – Send cutting jobs from any CAD with the printer feature.
New Highlights
Auto Precision Cutting For DTF Printing Film
A3 mini digital flatbed DTF cutter with vacuum and automatic contour cutting, no cutting dies required, and the sheets can be cut to any shape instantly from the desktop, suitable for small DTF printing business. Besides, it’s widely applied in various advertising industries, such as packaging boxes, tags, cards, labels, stickers, etc.
VACUUM SYSTEM
With the powerful airflow, the media is tightly attached to the suction platform, enabling the cutter blade to be positioned and cut quickly and accurately.
DXF DIRECT
Compatible with DXF files directly, with no need for any format transition.
ORIENTED ROLL MEDIA BRACKET
It is easy to feed media with the media bracket; the user may set up the bracket according to media features and specs, and the bracket improves productivity.
ONE-CLICK TO INSTALL PRINT DRIVER
Send cutting jobs from any CAD with the printer feature.
Why SC-A3 PLUS DTF Cutter?
- Strong air flow to hold down the media flat and tightly against the tabletop so that the tool carriage can perform fast, accurate cutting/plotting.
- Half cut / Perforation cut is available, every time you may carry out either one or both.
- Dotted line cutting is typically available for media with 2 layers and also kinds of paper.
- For media with multiple layers, the different cutting force is applied for different layer.
Cutter Application
Flatbed Digital DTF Cutter is well received in Electronic industry, Digital Printing & cutting, Packaging, Die cutting, Handicraft, and Signage graphics. This mini A3 flatbed cutter is designed for cutting high-precision material crafting jobs and is suitable for cutting intricate designs on cardboard, photo paper, vinyl sticker, DTF films, PET, PVC, and stiff paper materials.
FAQ
Q: Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggestions and discuss details with you for the machine which matches all the requests with the best cost performance.
Q: If I don’t know this machine before, how can I operate it?
A: We supply face-to-face training and provide operating video, user manual, and telephone calls to help. It’s easy to learn, one inexperienced person can learn it within one day.
Q: If I have some technical problems, how can you help us to solve them?
A: Please send a detailed description, photos, or videos to our technicians, who will analyze the problem and give the appropriate solution within the first time receiving the information.
Q: What is your delivery time?
A: Generally speaking, it is arranged in about 15-30 working days after full payment or deposit is received.
Q: How is your quality control & warranty?
A: Always final Inspection before shipment; 12 Months Warranty Time.
Q: How do I order a machine from you?
A: After you confirm the order details, we will send you a pro-forma invoice for confirmation. After payment is received, we will arrange production.
The shipping method is communicated to you and the final shipping product will be sent out within the agreed time.
Q: What are your payment methods?
A: T/T, D/P, D/A, Paypal, Western Union.
Q: How much tax should we pay?
A: Please get in touch with your local customs or import agent for details.
Q: Can we be the exclusive distributor of your machines?
A: We look forward to working closely with you. After you have ordered multiple machines and can provide superior after-sales service, we can begin discussing a distribution relationship.
Product Specifications - A3 DTF Film Cutter
| Model | SC-A3 Plus | |
| Working Size | 350 x 450mm | |
| Applicable Media Thickness | 0.03 -1mm | |
| Applicable Media | Soft and medium rigidity medias | |
| Method to Fix Media | Vacuum pump and or adhesive mat | |
| Max Cutting Speed | 600mm/s | |
| Max Cutting Force | 600G / 5.8N in 8 steps | |
| Cutting Force Setup | Adjustable in every 1G | |
| Cutter Blade Diameters | Ф0.9mm， Ф1.5mm， Ф2.0mm | |
| Cutter Blade Angles | 30°, 45°, 60° | |
| Dotted Lines Cutting | Included | |
| Drive | AC Servo | |
| Mechanical Resolution | 0.0125mm | |
| Compatible OS | Win10 / 8 / 7 / XP | |
| Memory Buffer | 2MB | |
| Software | Windows Driver, SignWorkPro, CADtoPlotpro | |
| LCD | English | |
| File Format | HP-GL, PLT | |
| Port in Standard | USB, RS-232 | |
| Registration Marks Recognition | GARMS with Red laser sensor | |
| Power Input | 110 – 220V AC, 50 – 60Hz | |
| Power Consumption in total | 620w | |
| Cutter Holder / Pen Holder | 1 for each types | |
| Types of Pen | Water based fiber-tip pen & Oil based ball pen | |
| Media Bracket | Included | |
| Package Size | 1050 x760 x 600mm(L*W*H) | |
| Gross / Net Weight | 67 / 52kg | |
